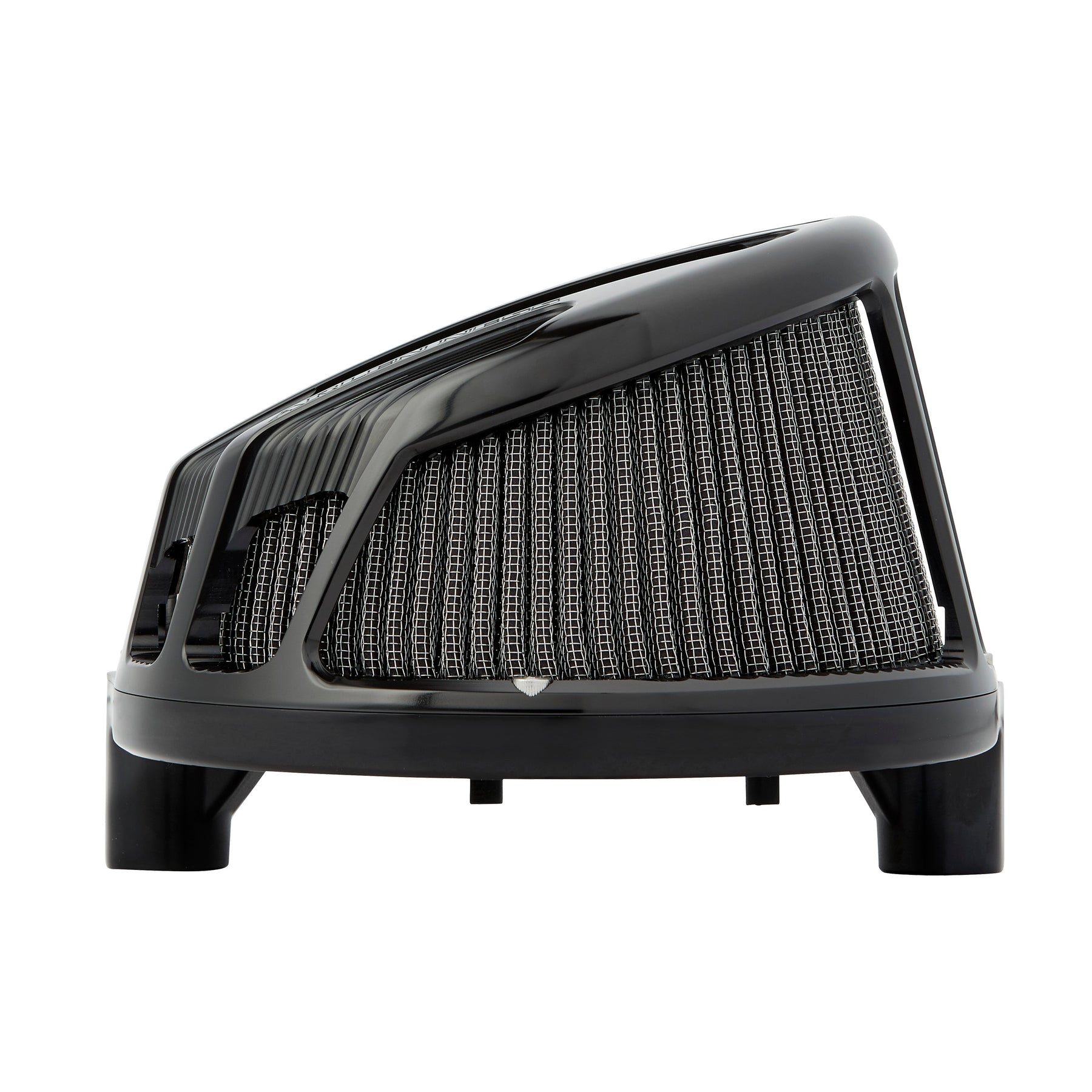

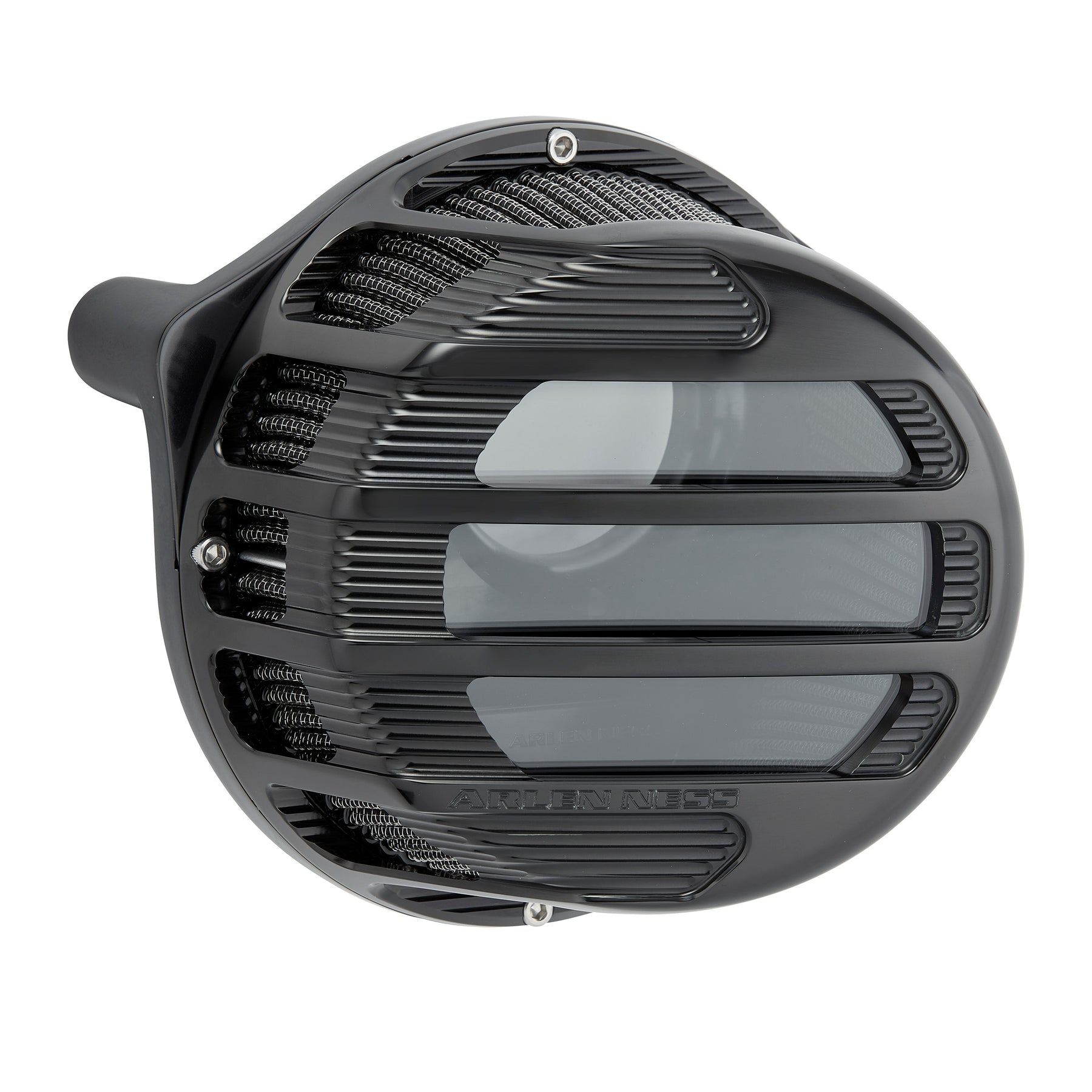

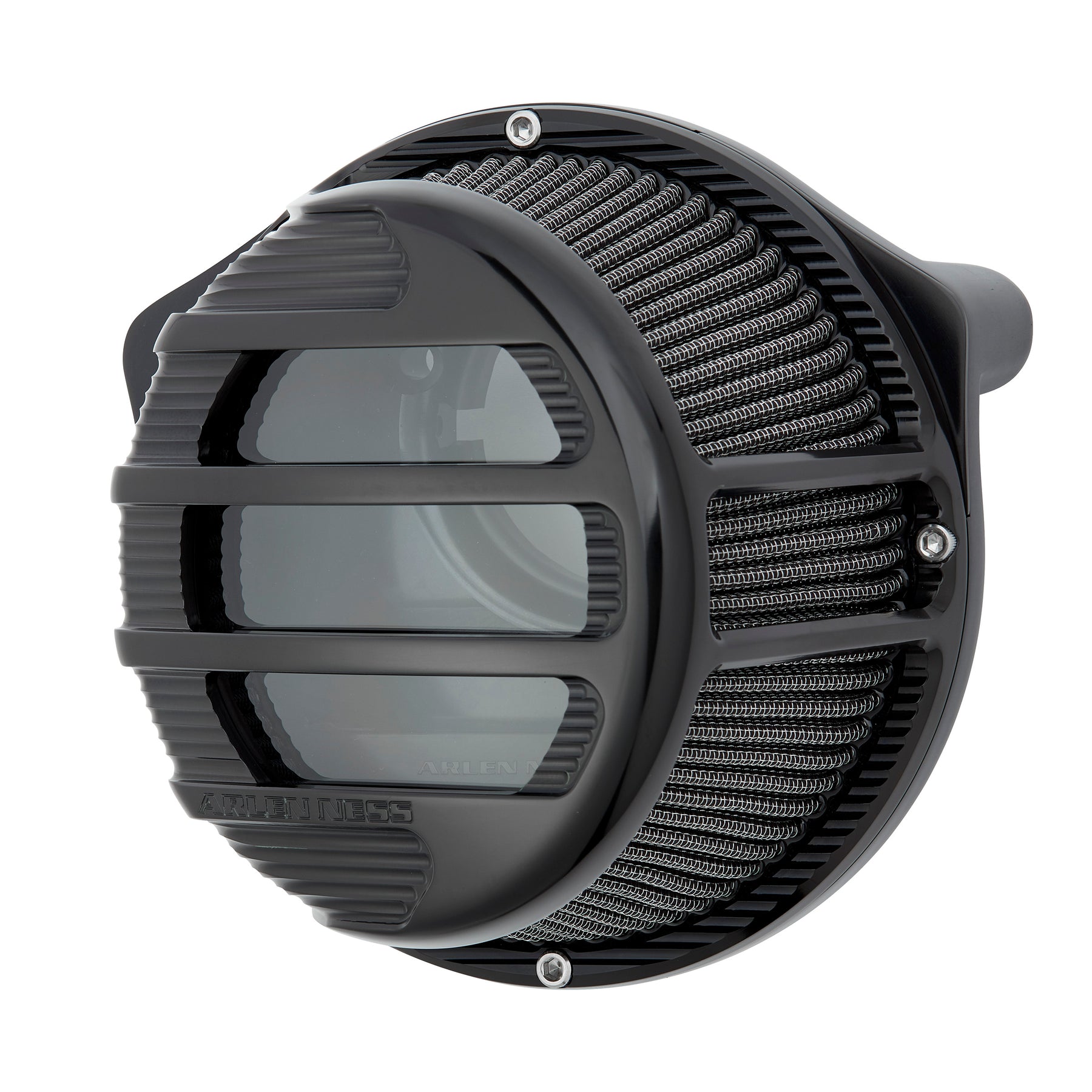

SideKick Air Cleaner, Black
The Sidekick air cleaner is an angled version of our forged billet air cleaners that provides excellent legroom and increased airflow. The performance air filter is made from a black synthetic filter element wrapped in a stainless steel mesh and accepts a clear polycarbonate window to view your intake system in action
- Angled Shape
- P atented backing plate technology (US Patent: US 10,851,741 B1)
- High performance Synthetic air filter
- CNC machined from forged billet aluminum
- Patent-Pending Oil Catch / Reservoir
- Increase horsepower, torque & mileage
- Excellent legroom
- Black anodize finish
California Air Resource Board: Executive Order D-639-12_R-01
FORGED BILLET ALUMINUM BACKING PLATE:
- CNC machined from forged billet aluminum
- Features Patent-Pending next generation hidden breather technology. Each hidden breather is o-ringed at the heads, passes through the backing plate and exits inside the mouth of the throttle body through proprietary shooter tubes. This eliminates the need for any external hoses or hardware for a virtually closed loop system
- Radius air inlet for unobstructed airflow
- Specially designed breather bolts are hidden under billet covers for a clean look
- Eliminates oil blow-bye issues associated with M8 engines by directing any excess breather oil back into the engine
- Patent-Pending Oil Catch / Reservoir. To ensure no oil saturates the filter and restricts your airflow, the integrated oil catch collects any excess engine oil before it reaches the air filter. Bolt-on design allows oil catch to be serviced when you service the filter element
PERFORMANCE AIR FILTER:
- Black pre-oiled performance air filter
- Designed for a clear polycarbonate top
- Re-usable / washable filter
- Rain socks / pre-filters and filter service kits available separately
AIR FILTER HOUSING & CLEAR WINDOW
- Outer air filter housing is CNC machined from forged billet aluminum
- Features an angled shape for increased leg clearance and detailed CNC machine work
- Clear Polycarbonate window allows you to view your engine's intake system in action
- Polycarbonate is hard-coated for long lasting durability and protection from engine oil and UV sunlight
99-17 TWIN CAM (EXCEPT: FBW)
- 2001-2017 Twin Cam Delphi EFI (Fuel Injected)
- 1999-2006 Twin Cam CV Carb
- *NOTE: Will not fit Fly-By-Wire Models: 08-17 FLT Touring / 16-17 Softail / 16-17 Dyna FXDLS & 99-01 F.I. FLT
08-16 TOURING / 16-17 SOFTAIL (FBW)
- 2008-2016 FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR / H-D FL Trike
- 2016-2017 Softails
- 2016-2017 Dyna FXDLS
- 2014-2015 FLSTNSE / 13-14 FXSBSE / 11-12 FLSTSE
- *NOTE: Twin Cam models equipped w/ FBW (Fly-by-Wire or Throttle-by-Wire)
91-UP XL SPORTSTER
- 1991-up Sportster 883 / 1200 with CV Carb or Delphi EFI
17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)
- 2017-up FLT Touring / Bagger - FLHT / FLHR / FLHX / FLTR
- 2018-up Softail Models
22-UP NIGHTSTER SPORTSTER
- 2022-up RH975 models
BACKING PLATE ASSEMBLY (FITMENT SPECIFIC)
08-16 FLT / 16-17 SOFTAIL & FXDLS (FBW)
Backing Plate: 18-200-1B
Backing Plate Spacers: 18-476-3B (2)
Breather Bolts: 18-472-3 (2)
O-Rings (6 pack): H-024-6
Throttle Body Gasket: 18-510-2
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
Shooter Tubes (2 pack): BT-002
00-17 TWIN CAM (EXC. FBW)
Backing Plate: 18-201-1B
Backing Plate Spacers: 18-472-2B (2)
Breather Bolts: 18-472-3 (2)
O-Rings (6 pack): H-024-6
Throttle Body Gasket: 18-500-5
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
Shooter Tubes (2 pack): BT-002
91-UP XL SPORTSTER
Backing Plate: 18-202-1B
Backing Plate Spacers: 18-202-2B (2)
Breather Bolts: 18-202-3 (2)
O-Rings (6 pack): H-024-6
Throttle Body Gasket: 18-500-5 (2)
Throttle Body Hardware, 1/4-20 x 3/4: H-656Z (3)
Shooter Tubes (2 pack): BT-002
17-2023 M8 MODELS (EXCEPT: 2023 FLHXSE & FLTRXSE)
Backing Plate: 18-203-1B (No Spacers Needed)
Breather Bolts: 18-457-4Z (2)
O-Rings (4 pack): H-024-4
Throttle Body Gasket: 18-457-3
Throttle Body Hardware, 1/4-20 x 1: H-658Z (3)
Shooter Tubes (2 pack): BT-001
OIL CATCH ASSEMBLY
Oil Catch / Reservoir: 18-392-3
Oil Catch Gasket: 18-392-4
Oil Catch Hardware, 8-32 x 3/4: H-619S (2)
OUTER COVER ASSEMBLY
Sidekick Outer Cover, Black: 81-300-1B
Outer Cover Hardware, 10-24 x 5/8: H-627S (4)
Polycarbonate Window: 18-960-2
SIDEKICK PERFORMANCE AIR FILTER: 81-300-3
